1, Model:DCEC Cummins 4BTA3.9-G2, 4-cycle
2, Air Intake System:Turbo, Water/Air Cooling
3, Fuel System:AD type fuel pump
4, Cylinder Arrangement:4 in line
5, Displacement:3.9L
6, Bore and Stroke:102*120(mm)
7, Compression Ratio:16.5:1
8, Rated RPM:1500rpm
9, Max. Standby Power at Rated RPM:65KW/88.4HP
10, Governor Type:Electronic Speed Control System

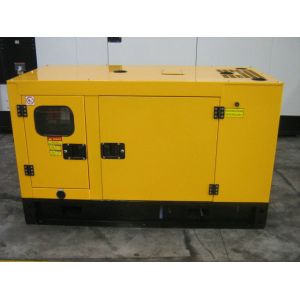

Soundproof Cummins Genset Diesel Generator , 1500rpm
|
Standby Power(50Hz)
|
52KW / 65KVA
|
|
Prime Power(50Hz)
|
48KW / 60KVA
|
Dimension & Weight
|
Soundproof Type
|
|
Overall Size: 2440(mm)×1060(mm)×1680(mm)
|
|
Weight: 1450kg
|
|
General Features:
|
|
Engine(DCEC Cummins 4BTA3.9-G)
|
|
Radiator 50OC max, fans are driven by belt, with safety guard
|
|
24V charge alternator
|
|
Alternator: single bearing alternator IP23, insulation class H/H
|
|
Absorber
|
|
Dry type air filter, fuel filter, oil filter
|
|
Main line circuit breaker
|
|
Standard control panel
|
|
Two12V batteries, rack and cable
|
|
Ripple flex exhaust pipe, exhaust siphon, flange, muffler
|
|
User manual
|
Engine Data
|
Manufacturer / Model:
|
DCEC Cummins 4BTA3.9-G2, 4-cycle
|
|
Air Intake System:
|
Turbo, Water/Air DC
|
|
Fuel System:
|
AD type fuel pump
|
|
Cylinder Arrangement:
|
4 in line
|
|
Displacement:
|
3.9L
|
|
Bore and Stroke:
|
102*120(mm)
|
|
Compression Ratio:
|
16.5:1
|
|
Rated RPM:
|
1500rpm
|
|
Max. Standby Power at Rated RPM:
|
65KW/88.4HP
|
|
Governor Type:
|
Electronic Speed Control System
|
|
Exhaust System
|
|
Exhaust Gas Flow:
|
14.8m3/min
|
|
Exhaust Temperature:
|
497℃
|
|
Max Back Pressure:
|
10kPa
|
|
Air Intake System
|
|
Max Intake Restriction:
|
6.2kPa
|
|
Burning Capacity:
|
5.9m3/min
|
|
Air Flow:
|
158m3/min
|
|
Fuel System
|
|
100%( Prime Power) Load:
|
216 g/Kw.h
|
|
75%(Prime Power) Load:
|
214 g/Kw.h
|
|
50%(Prime Power) Load::
|
221 g/Kw.h
|
|
100%( Prime Power) Load:
|
13.8L/h
|
|
Oil System
|
|
Total Oil Capacity:
|
16.4L
|
|
Oil Consumption:
|
≤4g/kwh
|
|
Engine Oil Tank Capacity:
|
14.3L
|
|
Oil Pressure at Rated RPM:
|
350kPa
|
|
Cooling System
|
|
Total Coolant Capacity:
|
24L
|
|
Thermostat:
|
83-95℃
|
|
Max Water Temperature:
|
100℃
|
Alternator SpecifiCAT-parts-partsion
GENERAL DATA
Compliance with GB755, BS5000, VDE0530, NEMAMG1-22, IED34-1, CSA22.2 and AS1359 standards.
Alternator Data
|
Alternator Data
|
|
Number of Phase:
|
3
|
|
Connecting Type:
|
3 Phase and 4 Wires, “Y” type connecting
|
|
Number of Bearing:
|
1
|
|
Power Factor:
|
0.8
|
|
Protection Grade:
|
IP23
|
|
Altitude:
|
≤1000m
|
|
Exciter Type:
|
Brushless, self-exciting
|
|
Insulation Class, Temperature Rise:
|
H/H
|
|
Telephone Influence Factor (TIF):
|
＜50
|
|
THF:
|
＜2%
|
|
Voltage Regulation, Steady State:
|
≤±1%
|
|
Alternator Capacity:
|
60KVA
|
|
Alternator Efficiencies:
|
88.8%
|
|
Air Cooling Flow:
|
0.216m3/s
|
Generating set data:
|
Voltage Regulation:
|
≥±5%
|
|
Voltage Regulation, Stead State:
|
≤±1%
|
|
Sudden Voltage Warp (100% Sudden Reduce):
|
≤+25%
|
|
Sudden Voltage Warp (Sudden Increase):
|
≤-20%
|
|
Voltage Stable Time (100% Sudden Reduce):
|
≤6S
|
|
Voltage Stable Time (Sudden Increase)
|
≤6S
|
|
Frequency Regulation, Stead State:
|
≤5%
|
|
Frequency Waving:
|
≤0.5%
|
|
Sudden Frequency Warp (100% Sudden Reduce):
|
≤+12%
|
|
Sudden Frequency Warp (Sudden Increase):
|
≤-10%
|
|
Frequency Recovery Time (100% Sudden Reduce):
|
≤5S
|
|
Frequency Recovery Time (Sudden Increase):
|
≤5S
|
ptions
Competitive Advantage:
High Performance of loading Easy start
Nice protection User-friendly operation
Low running cost Environmental Long service life
